ZRC® Zero-VOC Galvanizing Compound

  • Environmentally friendly
  • Contains no volatile organic compounds
  • Solvent-free formulation
  • Combines best features of organic and inorganic zincs
  • Convenient one-coat system
  • Easily cleans up with water
  • Meets VOC standards in all 50 states
Joomla SEO by AceSEF

Battling Rust at Marina

"Using ZRC is a no brainer. Only ZRC has what it takes to hold up to saltwater year after year."

  • Specifications
  • Characteristics
  • Application
  • Technical Data & SDS
  • How To Buy
TYPE: Two pack water based galvanizing compound.

GENERAL PROPERTIES: ZRC® ZERO-VOC is a advanced-technology cold galvanizing compound based on a trade secret binder which affords true galvanic anti-corrosion protection to metals without the necessity of sandblasting for most metals. Also withstands high temperatures.

SUBSTRATES: Apply to properly prepared carbon steel, cast iron, and aluminum surfaces. Not recommended for hot-dip galvanizing surfaces.

NOT RECOMMENDED FOR: Contact with potable water, acids or alkaline environments will require appropriate top coats.

SALT FOG EXPOSURE: 10,000 + Hours (ASTM B117)

PROHESION/QUV EXPOSURE: 2,000 + Hours (ASTM D5894)

VOC: 0 lbs/gal (0 gms/ltr) (ASTM D3960)

TEMPERATURE RESISTANCE (non-immersion):
Continuous: 1200º F maximum/ 649º C maximum
Non-Continuous: 1700º F maximum/ 927º C maximum


PROJECT SPECIFICATIONS:

- Suggested Specification Verbiage

- CSI Format Specification

- Outline Specification

SOLIDS CONTENT:
% Solids of Liquid Coating — 81% (by weight)/43.7% (by volume)

METALLIC ZINC CONTENT: 93% by weight in dry film.
Zinc Dust used specified as ASTM D 520 Type III.

RECOMMENDED FILM THICKNESS PER COAT:
DRY: 2.5 - 3.0 mils (64-76 µ); WET: 5.0 - 6.0 mils (127-152 µ)

COVERAGE:
300-350 ft² (28-33 M2) per gallon kit @ 1.5 mil (38 µ) dry film thickness

SHELF LIFE:  2 Years

FINISH:  Flat light grey

FLASH POINT:  None

WEIGHT PER GALLON:  25.2 lbs (ASTM D1475)

MASS DENSITY: 3.02 gms/cm³

VISCOSITY:  525 cps. Brookfield RVT spindle #5 @100 RPM, 25ºC

PENCIL HARDNESS:  4B (ASTM D3363)

IMPACT RESISTANCE:
Greater than 172 inch lbs. (Extrusion) (per ASTM-D2794)

ELECTRICAL CONDUCTIVITY:
2 million ohms per square @ 3 mils dry (Resistivity)

POT LIFE: At least 24 hours
(longer times before use will result in diminished performance).

SURFACE PREPARATION: Dependent upon surface conditions and intended service. Typical examples are as follows:

Grease & Oils Solvent to clean SSPC-SP1
Rust Scale Power tool clean to SSPC-SP3 or SSPC-SP11 (SIS St 2 or 3)
Pitted Steel, Mill Scale, Paint, Heavy Rust or Heavy-Duty Service Sandblast to SSPC-SP6 (commercial)(SIS Sa 2)
Water Immersion (100º F (38º C) Max) or if topcoat is to be appliced Sandblast to SSPC-SP10 (near white) (SIS Sa 2-1/2)
High Temperature Sandblast to SSPC-SP10(near white) (SIS Sa 2-1/2)

MIXING RATIO: 1 part Liquid: 3.1 parts Powder by weight. Containers are pre-measured to ensure proper mixing ratio. ALWAYS add powder to liquid. Homogenize thoroughly and strain through 30 mesh filter before application. To mix less than entire kit contents, weigh ingredients and use ratio printed above.


INDUCTION (SWEAT-IN) TIME: None

APPLICATION METHODS

BRUSH/ROLLER/AEROSOL: Per Mixing Instructions.

SPRAY (low pressure compressor type):
Typical Equipment Specification:
Binks #95 siphon-fed conventional air gun
Aircap: 66SK Fluid Tip: 66 SS
Atomized Air Pressure 40 psi (1.1 Kg/cm²)
Fluid Pressure 15 to 20 psi (0.4-0.6 Kg/cm²)
Orifice of Tip 0.080 inches (0.20 cm)
Viscosity Reduction Add water only if absolutely necessary

SPRAY (airless type):
Pump 30:1 Ratio
Hose 1/2" (1.3 cm)(I.D.) Airless Type
Orifice of Tip 60° - .026 in. (0.07 cm)
Type of Tip Tungsten carbide, reversing
Filter Screens Complete removal is recommended. However, if screens are employed, use no less than 30 mesh.
Viscosity No reduction required.
Recommended Procedure Connect hose directly to pump ensuring a hose length of 50 ft. max. Use in-pot agitator or continuous recycling. Use least pressure possible. Start at 1500 lbs. (105 Kg/cm3) and increase as required for good spraying.

CLEAN UP: Water

DRY TIME (set to touch): When ambient air dried, 15 minutes @ 1.5 mil (38 µ) thickness

ADDITIONAL COATS:( Additional coats (up to 6.0 mils total dft (152 µ) may be applied, allowing a minimum 4 hour cure time at 25ºC/ 77ºF to extend corrosion protection.

TOUCH-UP: Touch-up should be done using our ZRC Cold Galvanizing Compound, available in liquid and aerosol.

TOPCOATING: 24 hours after application of one coat of ZERO-VOC (1.5 mil dft) to a sandblasted surface, ZERO-VOC may be topcoated with acrylic, chlorinated rubber, epoxy, urethane or vinyl-type products. DO NOT TOPCOAT WITH ALKYD, or ALKYD-MODIFIED ACRYLIC-TYPE PRODUCTS!
PURCHASING INFORMATION: ZRC can be ordered directly from our factory (United States only) or through authorized distributors. To place an order or locate a local distributor please contact us at 1-800-831-3275 (domestic US only) or use our Online Inquiry Form. All our products are non-hazardous for regular UPS Ground and common-carrier transportation and can be shipped immediately from stock on MasterCard, Visa or American Express.

PRICING: Prices may be obtained from ZRC Customer Service at 1-800-831-3275 (domestic US only), 1-781-319-0400, by fax at 1-781-319-0404 or Online Inquiry Form.

AVAILABILITY: ZRC is stocked worldwide through authorized distributors.

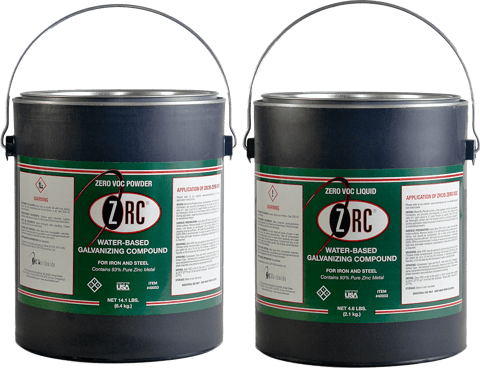

Size Part No. Weight/Unit Units/Case



1 Gallon Kit
(makes 0.74 gallons total)



40003



Component A: 4.6 lbs (2.1 kg)
Component B: 14.1 lbs (6.4 kg)



1
